Bar Lift Barrier

Loading Dock Safety Barrier

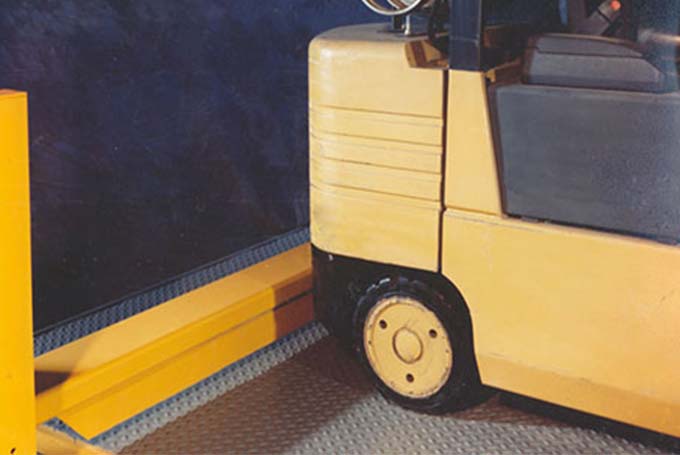

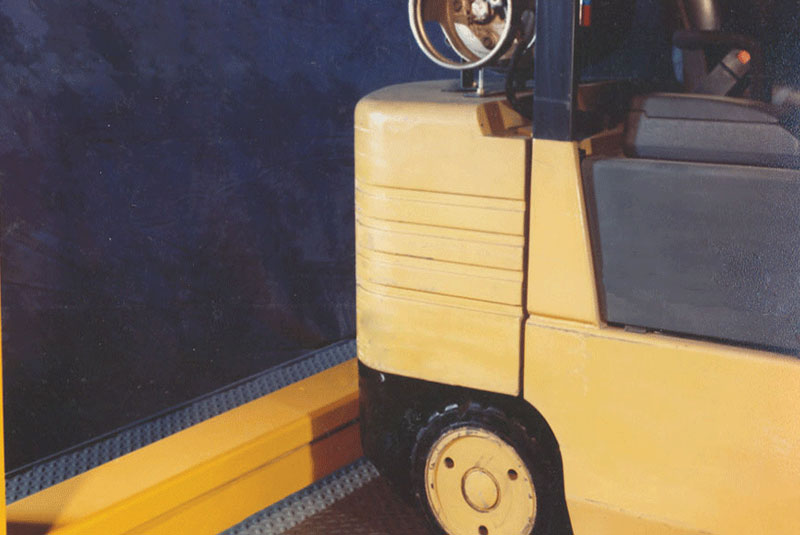

McGuire’s Bar-Lift Barrier prevents lift trucks from driving off the dock. Hydraulic operation provides years of uncomplicated service for use with mechanical, air operated and hydraulic dock levelers. McGuire’s Bar-Lift Barrier can also be installed on docks with no levelers.


The equipment is rated to withstand repeated impacts by a 10,000 lb. load moving at 4 mph. Standard units are 12’1” wide and include stanchion, barrier arm, and receiver pocket in safety yellow for ease of recognition. Also available are customized widths and gusseted models to protect the bottom panel of overhead doors.

A Means to Provide a Safety Barrier for Any Leveler that Does Not Incorporate a Barrier Lip

This is a completely independent system designed to provide added safety at the dock to assist in the prevention of accidentally driving or backing off the edge of the dock with a leveler in the stored position.

Ease of Operation

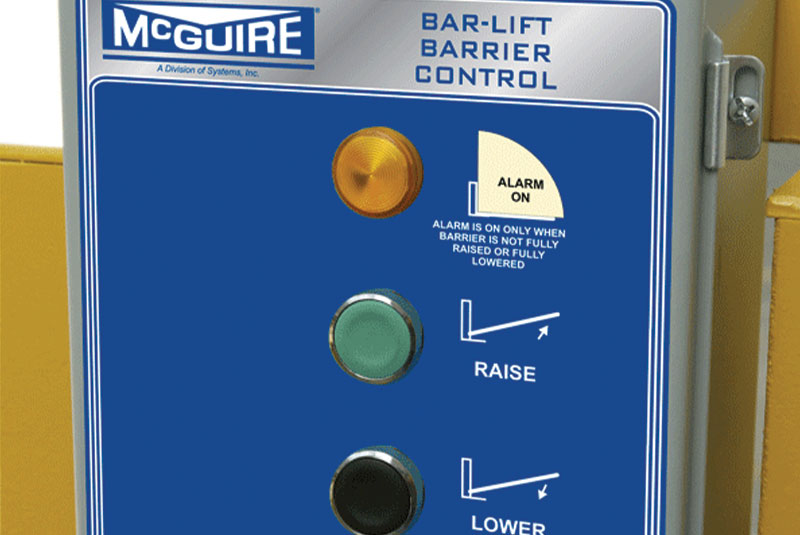

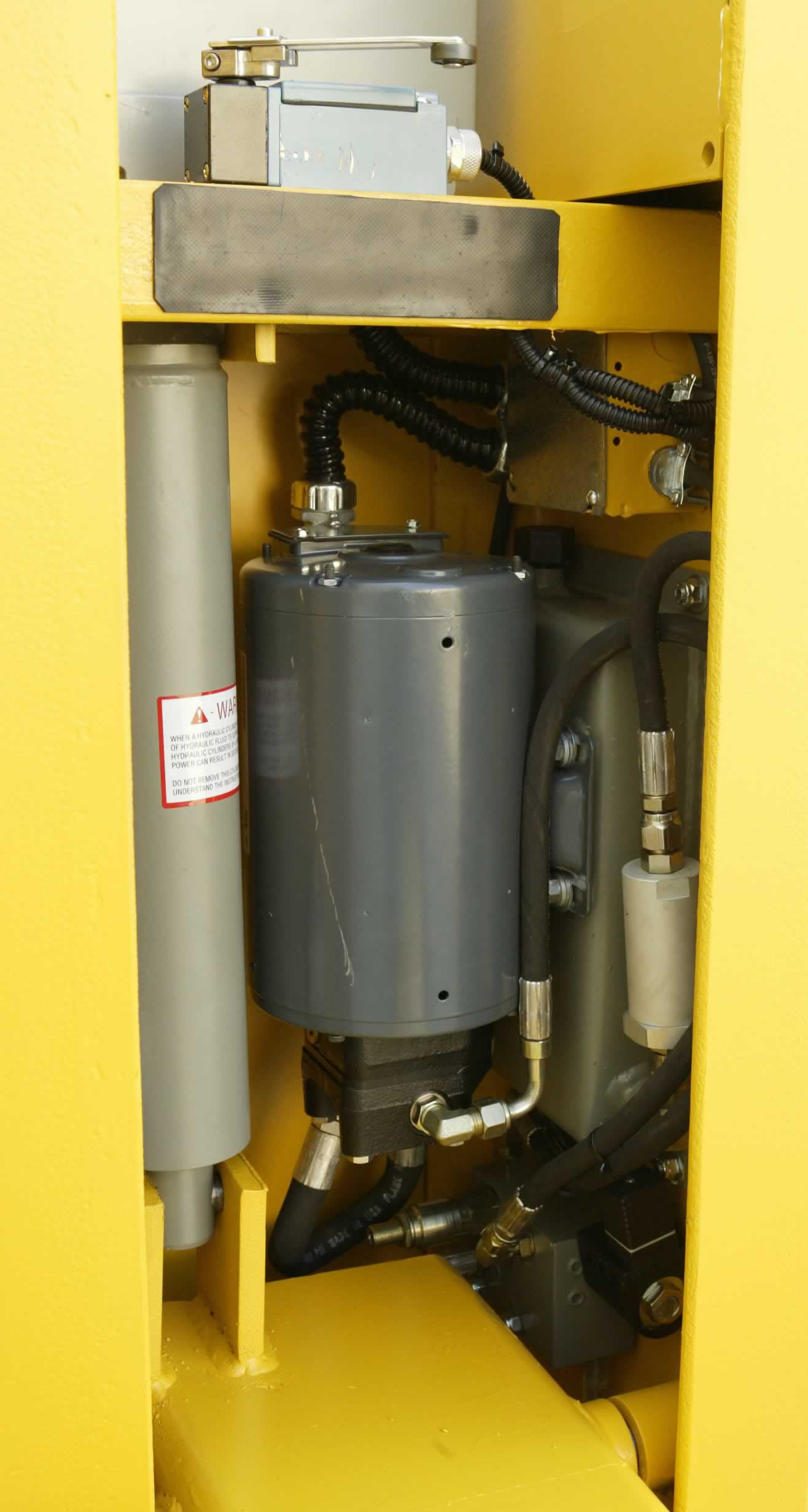

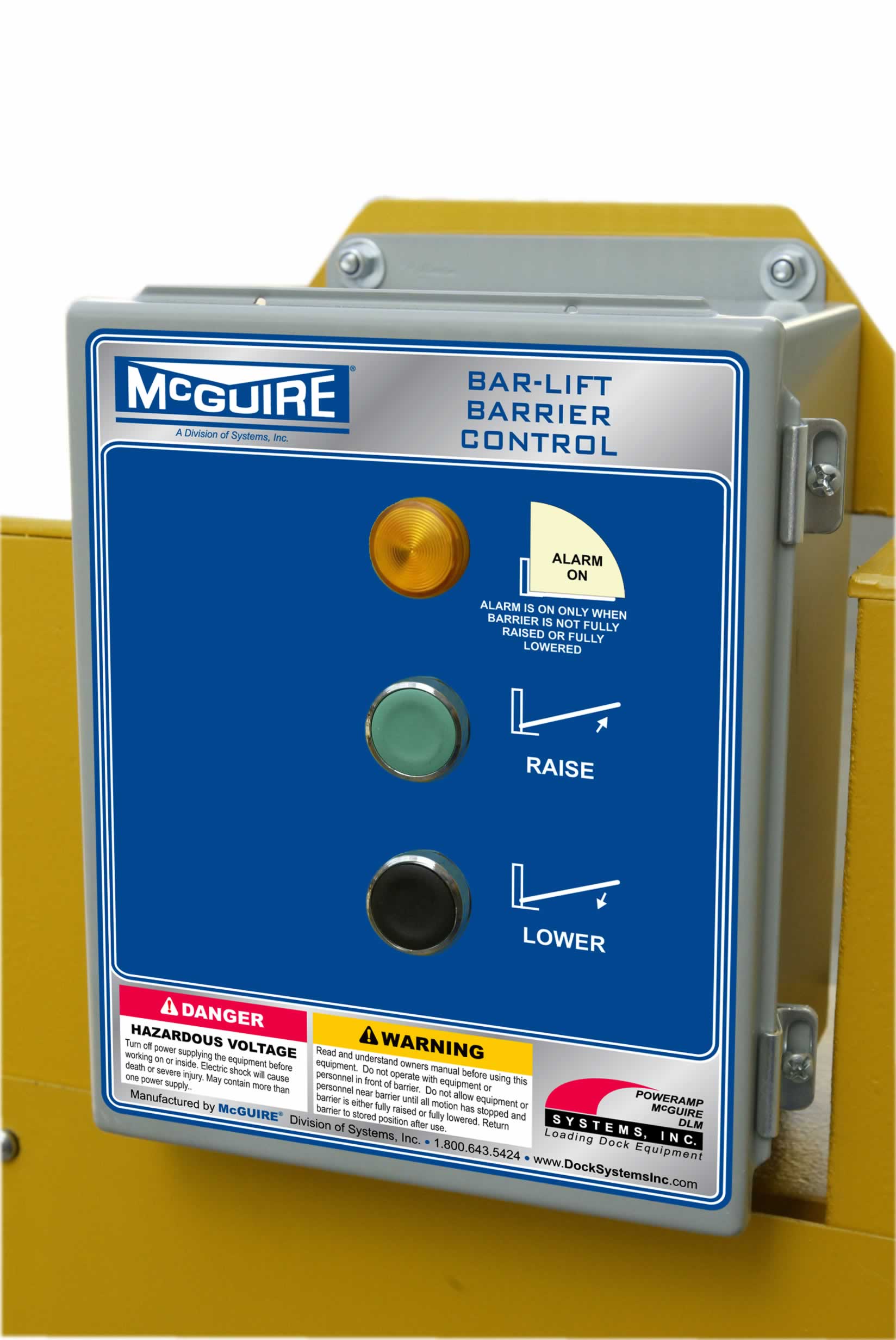

Using simple, easily available 115V/1PH power for operation of the 1.5 HP self-contained power unit in conjunction with an easy to understand control panel makes this an extremely attractive addition to safety at your dock

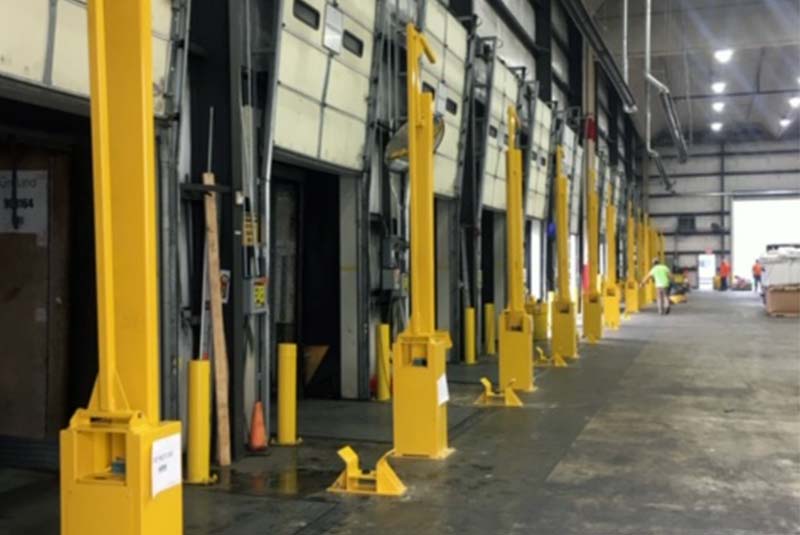

Available for Usage on Docks Without Any Dock Levelers At All

The stanchion, barrier arm and receiver pocket, all in high visibility safety yellow, can also be utilized at docks with no dock levelers at all to provide the same high level of protection to fork lifts at the dock.

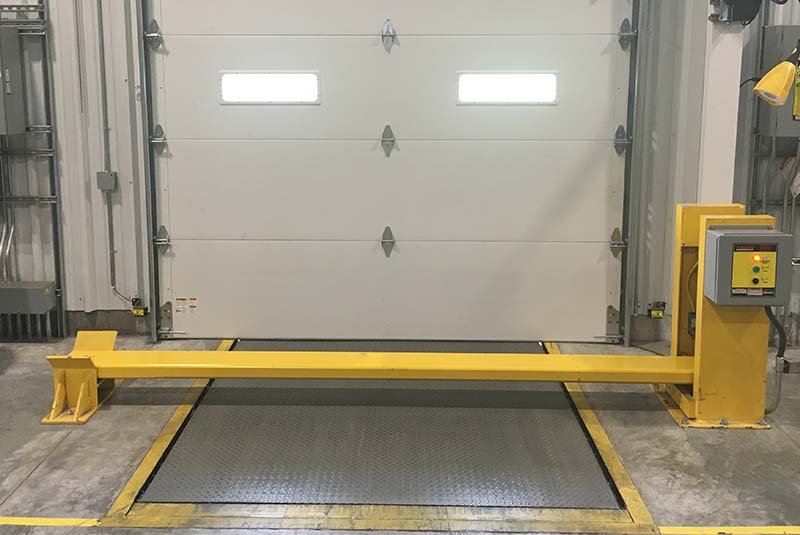

Ability to Also be Designed to Protect Your Overhead Doors

We have customized widths and gusseted models available to also protect the bottom panel of your overhead doors.

Want to know more about the Bar Lift Barrier?  Request a Quote today.

Related Products

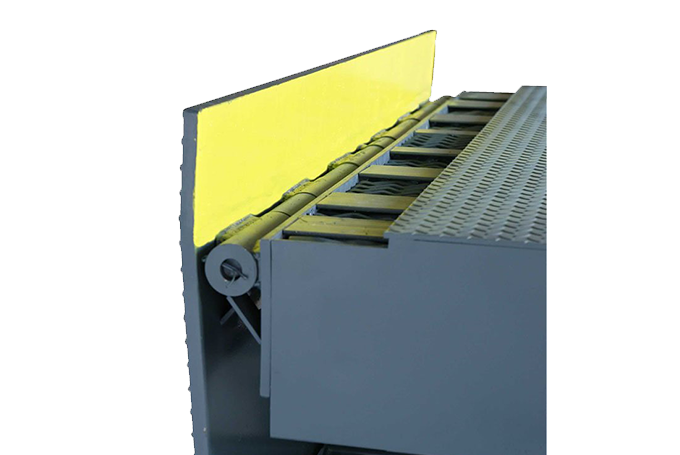

  • Barrier Lip Leveler
