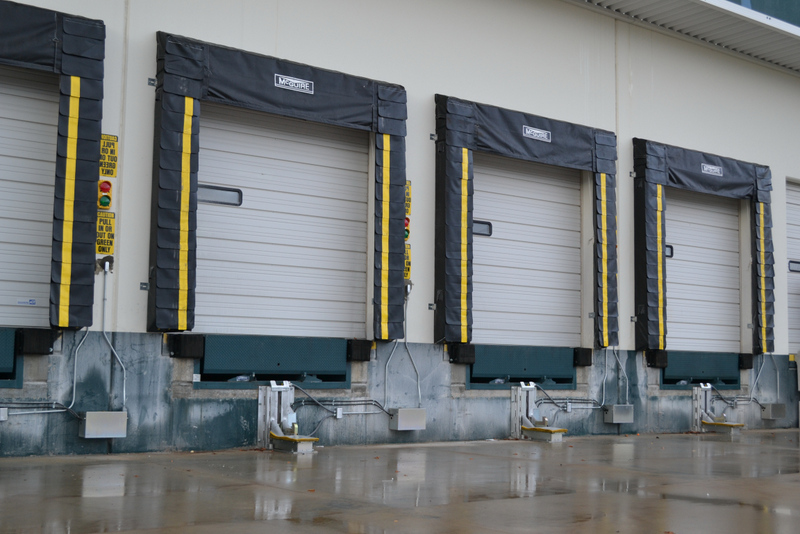

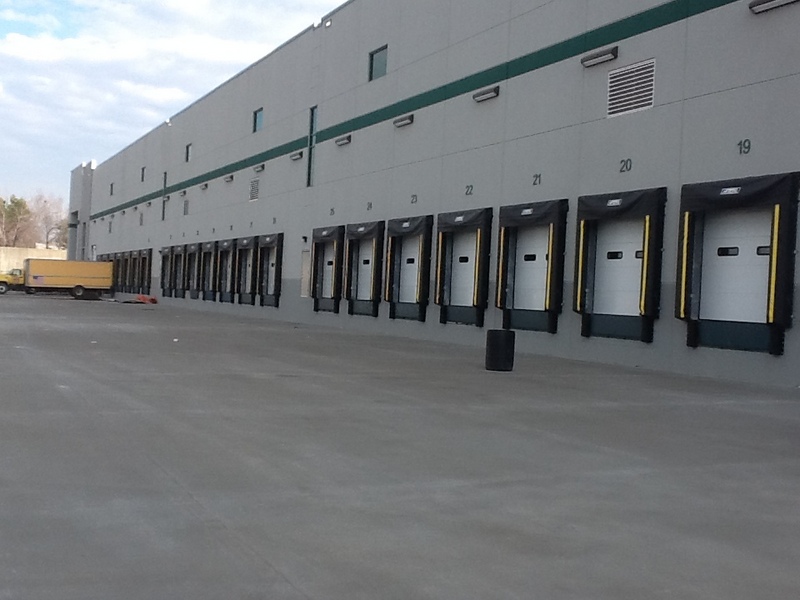

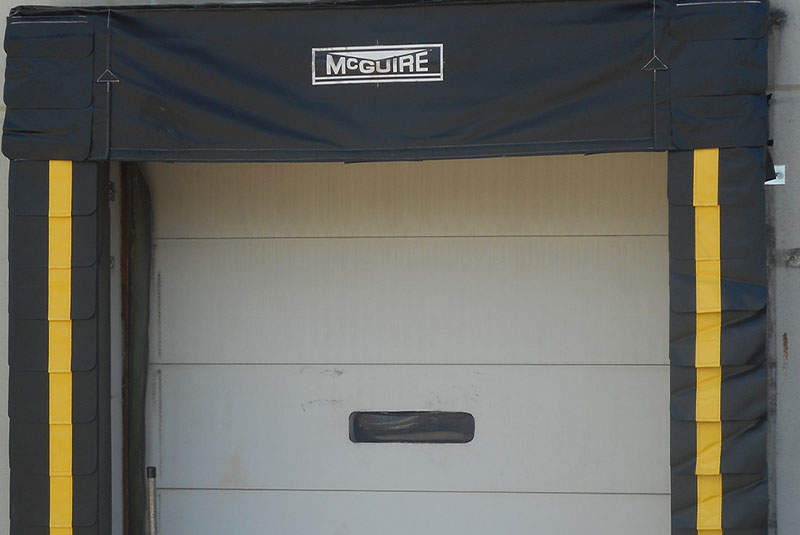

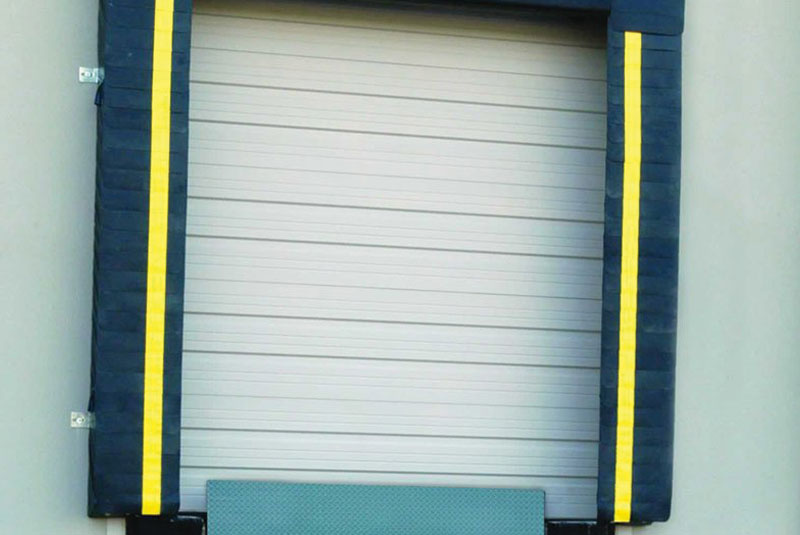

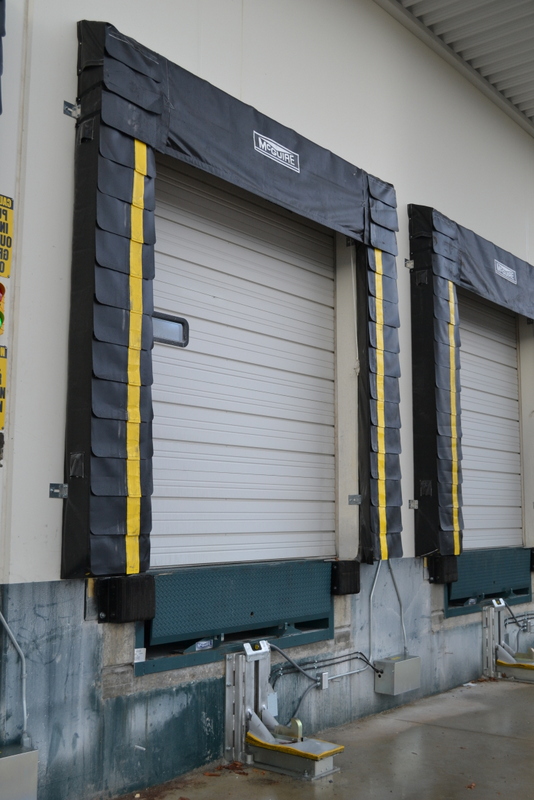

TS103 Line of TS103 Installed Close-up TS103

* Product images may appear with optional features or accessories.

TS103 Curtain Head

Dock Seal

The TS103 dock seal with foam side pads and a curtain head is the most effective means to accommodate high volume traffic with differing trailer heights. Two high quality side pads combine with full width curtain to seal a variety of trailers. A wide selection of highly durable fabrics and additional wear surfaces are available to maximize durability. A variety of pad width, projections, tapers and bevel shapes assure customer satisfaction.


MODELS AND BASE FABRIC:


TS113 — 22 oz. Vinyl ------ Medium usage
TS123 — 40 oz. Vinyl ------ Medium to Heavy usage
TS143 — Truk Flex™ ------ Heavy usage
TS153 — Rough Flex™ --- Medium usage


DESIGN STANDARDS:

  • Head curtain drop of 24” over side pads
  • 10” projection with 4” dock bumper
  • 22 oz. vinyl base fabric
  • 8’wide x 10’high opening maximizes seal
  • 7’6” between side pads at face
