MA Air-Powered Leveler
Pit Style, Air Powered Dock Leveler
The MA Series air-powered dock leveler is designed to provide easy push button pneumatic operation along with dependability and strength in light to medium to some heavy-duty applications. The “MA” offers a practical alternative to achieve easy push button smooth, consistent operation like the “H” and “HP” hydraulics with the same built-in safety, durability, and toughness. Ease of clean out and servicing are features of all McGuire levelers. Your budget, your safety, and trouble-free service continue to be number one with McGuire. They are also most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility.
The “MA” air-operated levelers have built-in safety features and save time in operation and maintenance. They come in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths. Standard capacities are 25K, 30K, 35K, 40K, 45K, and 55K CIR (Comparative Industry Rating).
Available with
SPECIFICATIONS
| MODEL | NOMINAL SIZE |
|---|---|
| MA-66 | 6' x 6' |
| MA-68 | 6' x 8' |
| MA-610 | 6' x 10' |
| MA-656 | 6'6" x 6' |
| MA-658 | 6'6" x 8' |
| MA-6510 | 6'6" x 10' |
| MA-76 | 7' x 6' |
| MA-78 | 7' x 8' |
| MA-710 | 7' x 10' |
| DYNAMIC CAPACITY / COMPARATIVE INDUSTRY RATING |
|---|
| 12,500 / 25,000 |
| 15,000 / 30,000 |
| 17,500 / 35,000 |
| 20,000 / 40,000 |
| 22,500 / 45,000 |
| 27,500 / 55,000 |
PRODUCT DOCUMENTS
- MA Brochure
- MA Spec Sheet
- MA Owner's/User's Manual
- MA Series Check Sheet
- MA Pit Detail
- Total Site Survey
- Leveler Grade Chart
- Spanish Total Site Survey
- 3-Sided Box / Leveler Installation
- 4-Sided Box / Leveler Installation
- Preventative Maintenance Program
- McGuire Line Card
- MA Series Dock Leveler PM Checklist
- Spanish MA Brochure
- Spanish McGuire Full Product Overview
-

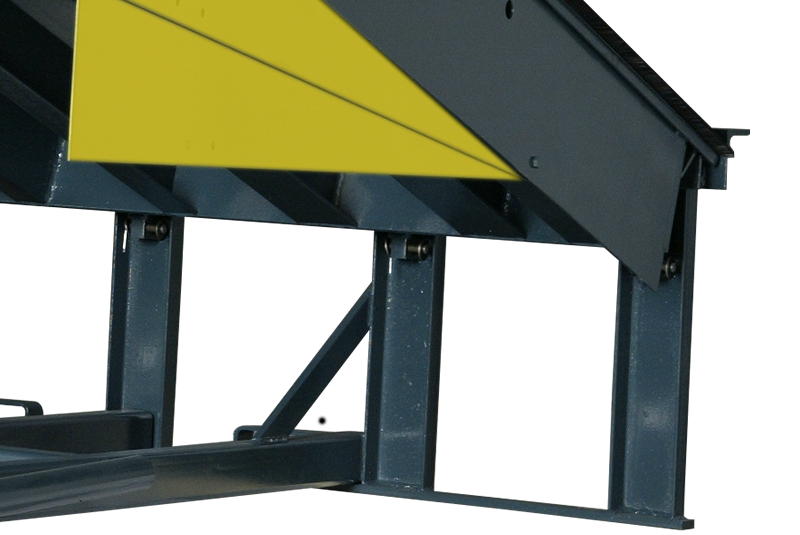

Structural Steel Frame
While some manufacturers use flat stock or other light duty material, McGuire uses 4" structural "C" channel on all pit levelers.
-
115V/1Ph Power

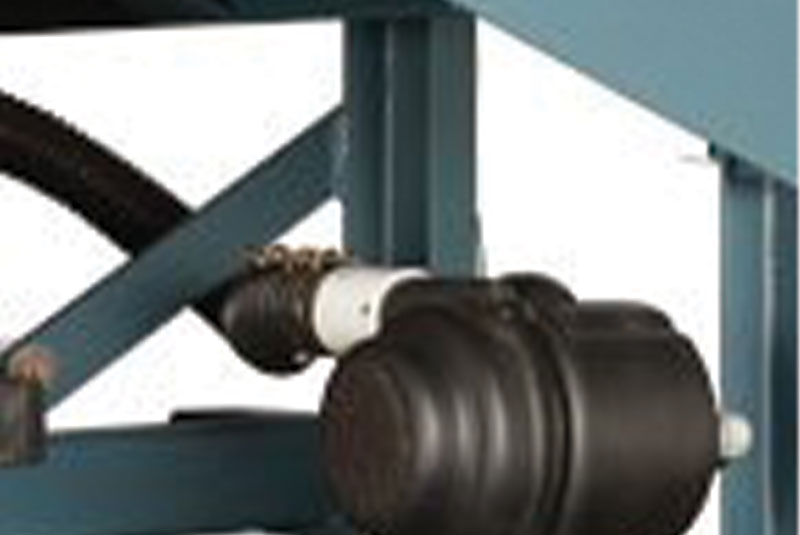

Operation of the low pressure/high volume air supply system is via this readily available 115V/1PH power source. Easy to operate with a simple push button to reliably activate and position your leveler. A receptacle type plug end is standard for ease of installation.
-

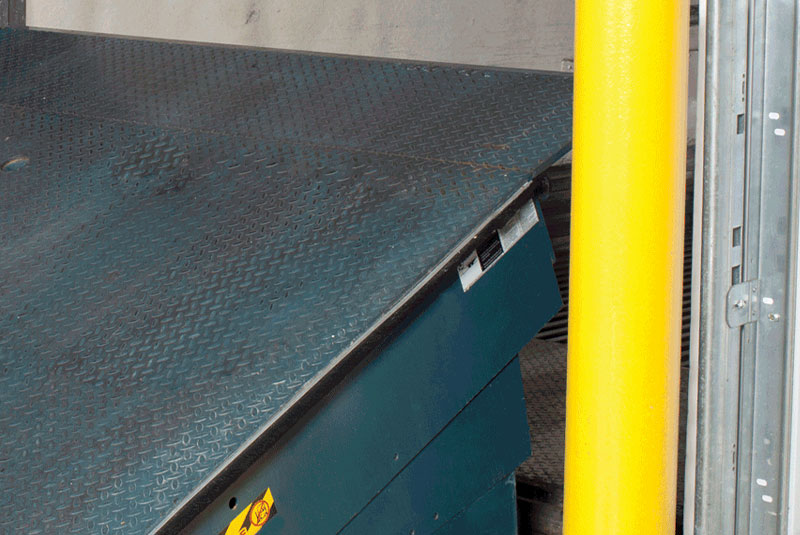

Full Range Telescoping Toe Guards
Provides top safety to your employees at the dock while operating any McGuire hydraulic or air operated dock leveler. Assures any dock leveler with a downward bias inherent in operation has enhanced safety closures at the edges to protect your employees.
-

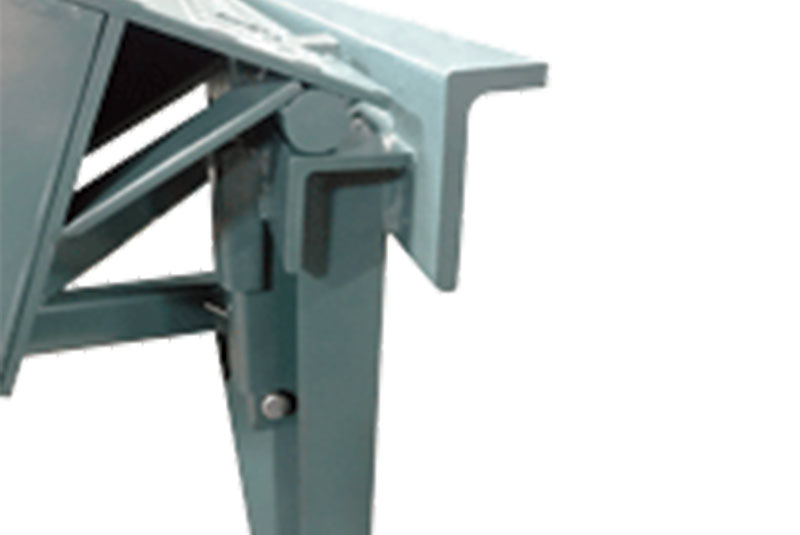

Full Width Rear Hinge
McGuire is the only dock leveler manufacturer that employs a full width rear hinge mounted in compresssion, using a 1" diameter solid steel rod. So indestructable, it carries a lifetime warranty.
-

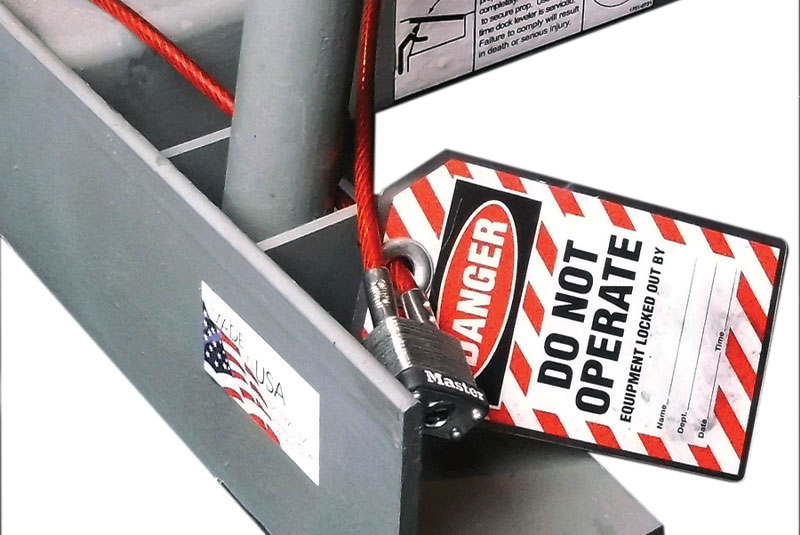

Lockout/Tagout Maintenance Strut
Enhance safety at the dock during required maintenance and adjustments with this high visibility safety feature on all McGuire dock levelers. This takes your dock safety program to a higher level with suggested usage of this feature.
-
Connect Online

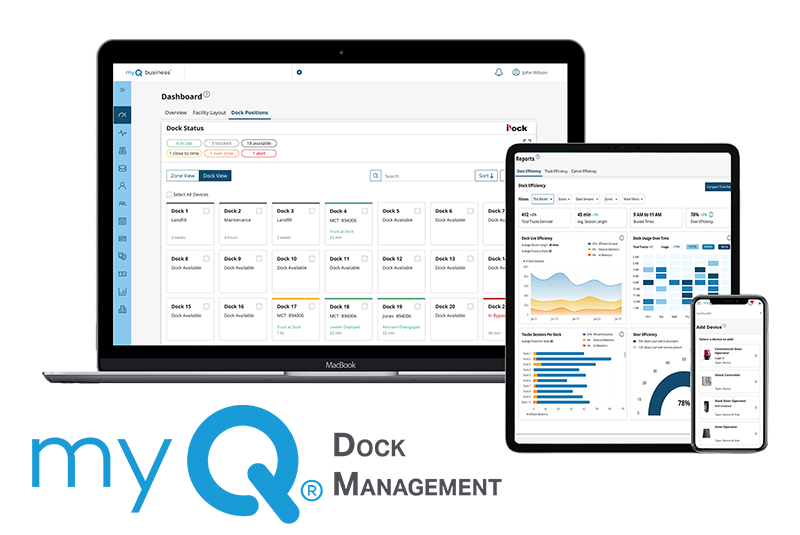

Option to connect to myQ Dock Management and view the leveler activity online.
