TC900 Soft Sided

TC900 Soft Sided

Dock Shelter

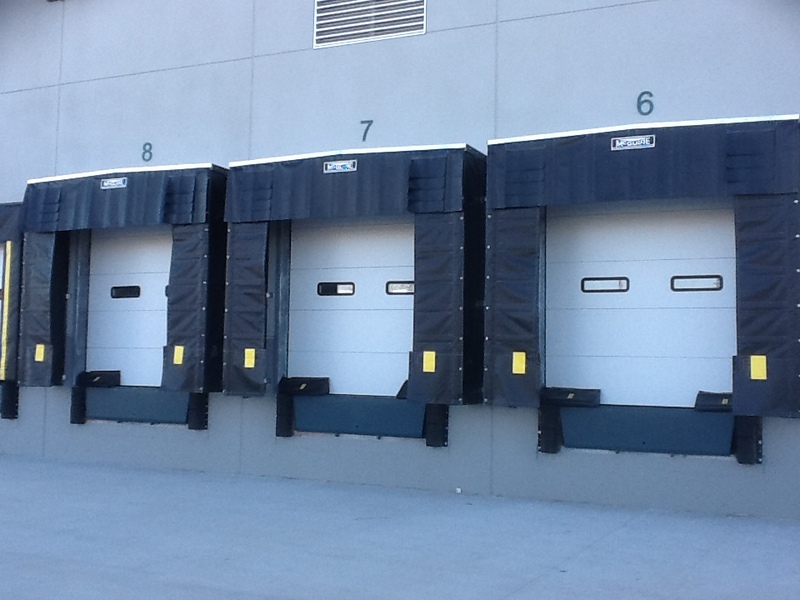

The TC 900 series soft sided shelter services a wide variety of vehicle sizes and types, while providing full unimpeded access to the interior of the trailer. It has durable foam side frames that are mounted to double kiln dried lumber at the wall with removable side curtains attached to high impact polypropylene on inside of foam pads at the face. The TC900 series shelter comes standard with a structurally self supported head canopy that is translucent and raked for drainage. Head and side curtains have ScotchPly® stays. The soft sides on the shelter prevent damage to the shelter from any off center trailers. Bottom draft pads are standard.


MODELS AND BASE FABRIC:


TC910 — 22 oz. Vinyl ---- Medium usage
TC920 — 40 oz. Vinyl ---- Medium to Heavy usage
TC940 — Truk Flex™ ---- Heavy usage
TC950 — Rough Flex™ -- Medium usage
TC960 — Max Flex™ ----- Very heavy usage


DESIGN STANDARDS:

  • Standard unit is 12’ wide x 11’ high x 18” projection with 36” curtain drop for 10’W x 10’H opening
  • Head curtain has five fiberglass stays, four overlapping wear pleats per side & wind straps
  • Side curtains have closed cell neoprene sealing edge, bottom wear panels & fiberglass stays max 16” O.C.
  • Removable side curtains mount to high impact polypropylene on inside edge of foam side pads
  • Structurally supported head canopy with translucent fiberglass
  • 22 oz. vinyl base fabric
  • One pair foam bottom draft pads
  • 7’0” between side panels at face

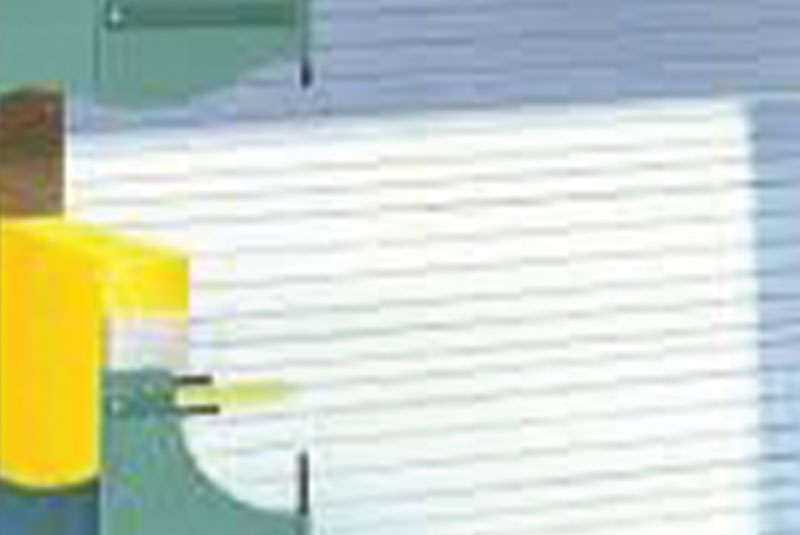

Durable Foam Side Frames

The shelter has durable foam side frames that are mounted to double kiln dried lumber at the wall with removable side curtains attached to high impact polypropylene on inside of foam pads at the face.

Self-Supported Head Canopy

It comes standard with a structurally self-supported head canopy that is translucent and raked for drainage. Head and side curtains have ScotchPly® stays to seal tighly against trailer.

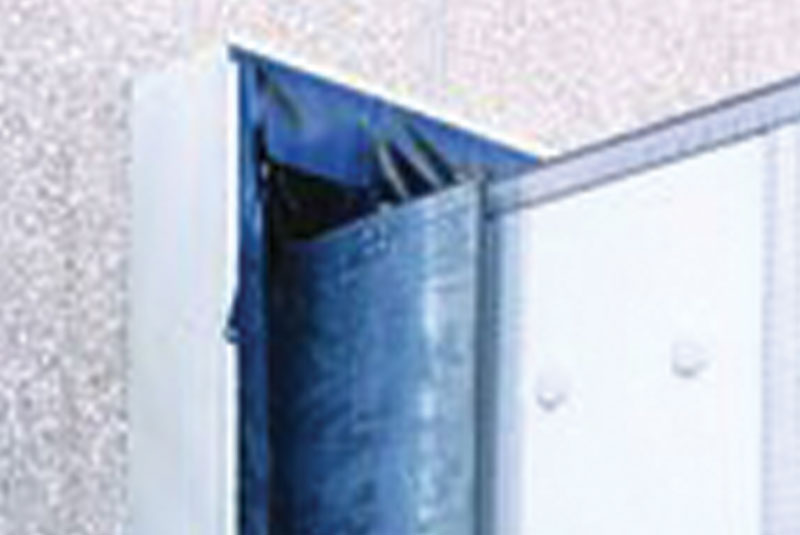

Services Wide Variety of High Volume Traffic

Services a wide variety of high volume traffic with varying widths and heights, while providing unimpeded access to the interior of the trailer.

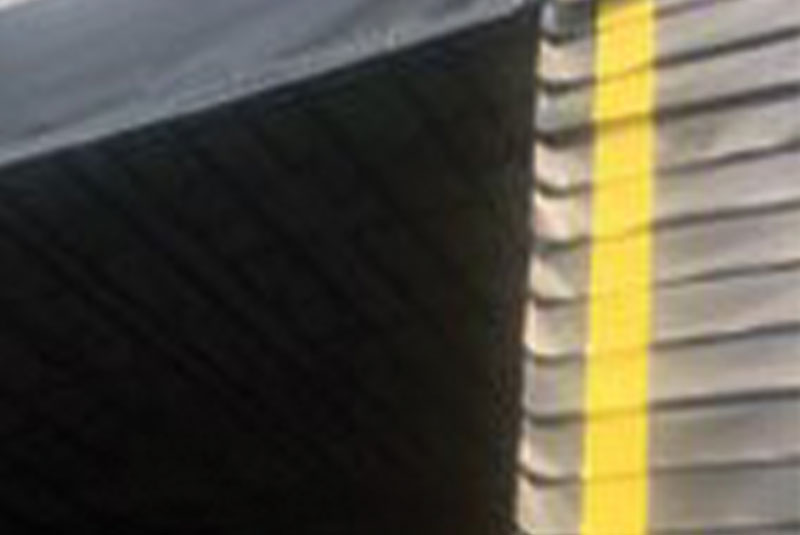

Yellow Guide Stripes

Yellow guide stripes are standard to assist in positioning of the trailers and foam bottom draft pads help prevent air flow.

Want to know more about the TC900 Soft Sided? Request a Quote today.
Related Products
  • TS101 Fixed Head

  • TS103 Curtain Head

  • TS500 CWT Adjustable Head

  • TC400 Rigid Wood Frame

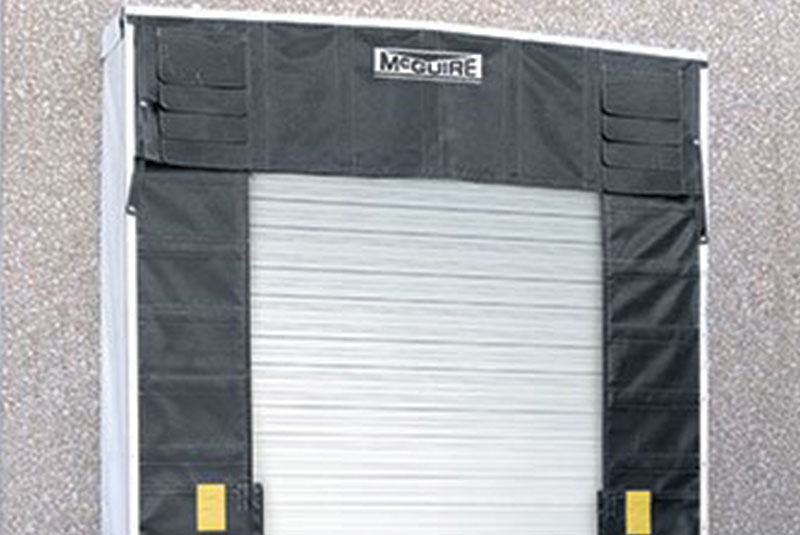

  • TC300 Flexible Steel Frame
