HP Hydraulic Leveler

Pit Style Hydraulic Dock Leveler

The HP Series hydraulic dock leveler is designed with dependability and toughness in mind for your medium to lighter duty applications. The “HP” offers the same easy push button smooth, consistent operation as the heavy duty H series and the same built in safety, durability and toughness. Easy clean out and servicing are features of all McGuire levelers. Your budget, your safety and trouble free service are always number one with McGuire. They are also most often mounted in a pre-formed pit at the dock commonly used to reduce the grade between the dock floor and the trailer bed. Various sizes and capacities allow for a large amount of flexibility. Hydraulic levelers have added safety features and save time in operation and maintenance.


This series comes in 6’, 6’6” & 7’ standard widths and 6’, 8’ & 10’ standard lengths with 12’ and other lengths available. Standard capacities are 25K, 30K, 35K and 40K CIR (Comparative Industry Rating).

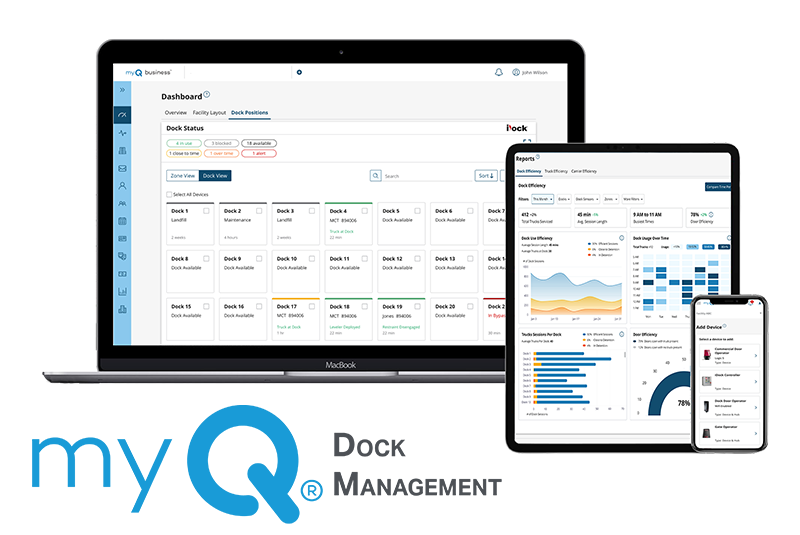

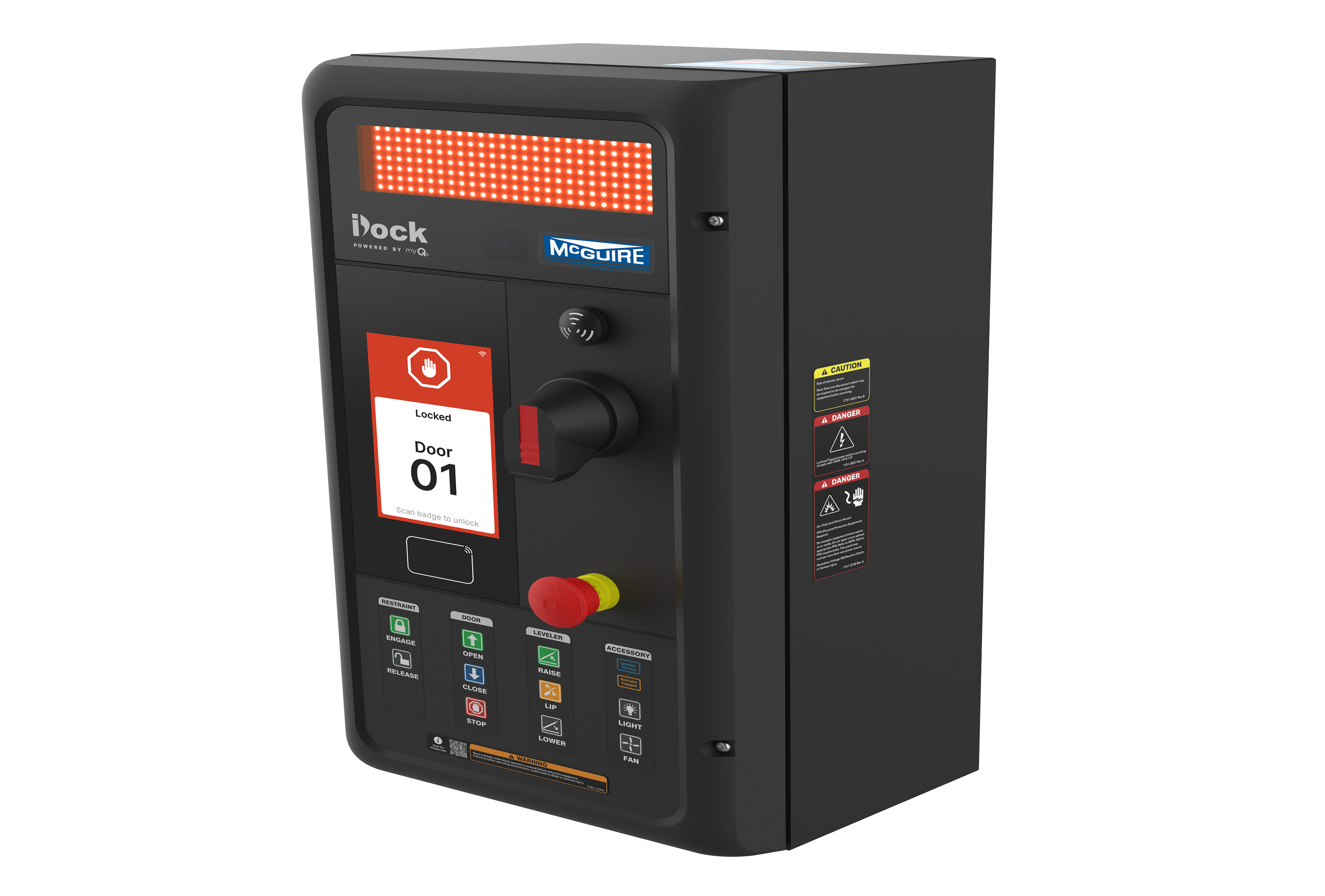

Now available with   iDock Controls

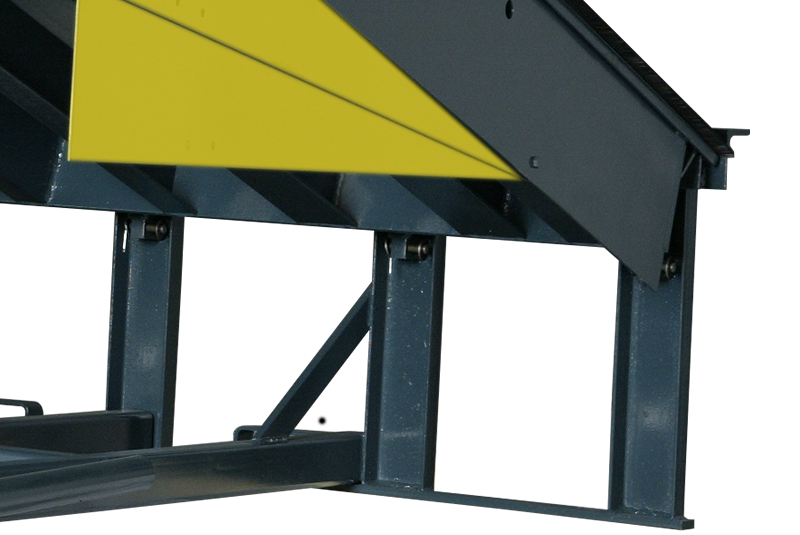

Structural Steel Frame

While some manufacturers use flat stock or other light duty material, McGuire uses 4" structural "C" channel on all pit levelers.

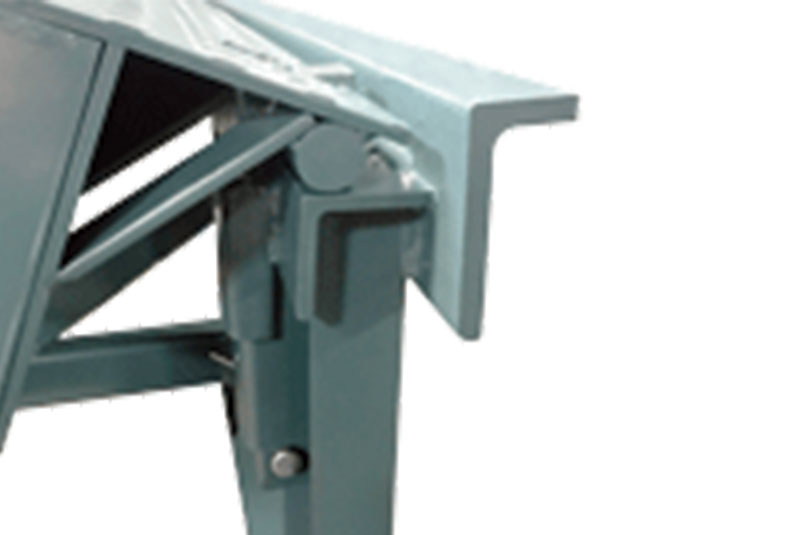

Full Width Rear Hinge

McGuire is the only dock leveler manufacturer that employs a full width rear hinge mounted in compresssion, using a 1" diameter solid steel rod. So indestructable, it carries a lifetime warranty.

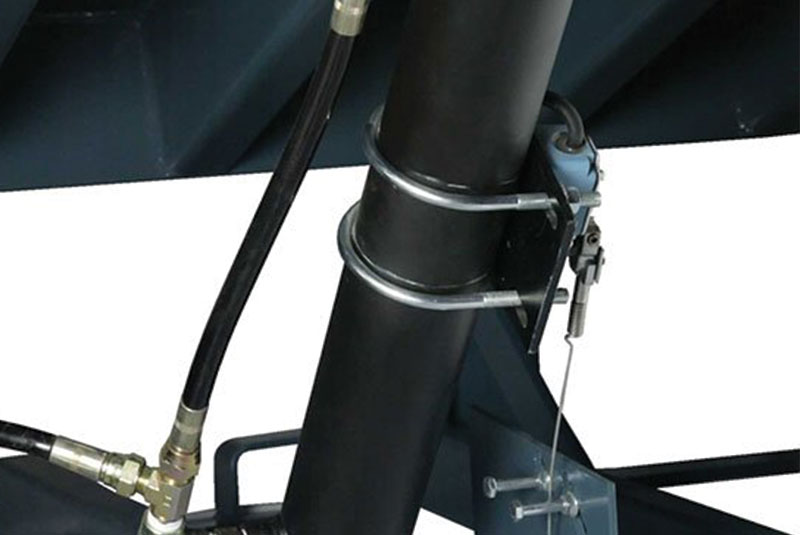

Regenerative Hydraulic System

Dual port cylinders allow hydraulic fluid to travel in both directions, creating a faster lift. Dual ports are found on both lift and lip cylinders.

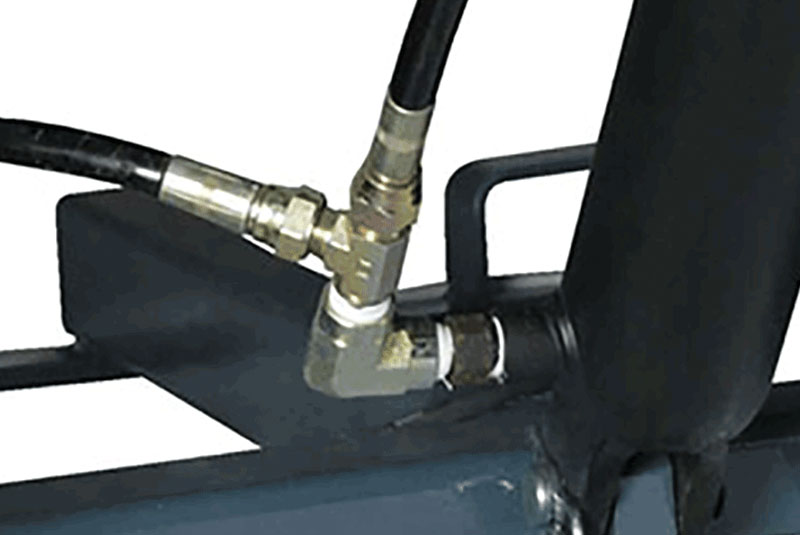

Velocity Fuse Protection

McGuire uses a tamperproof velocity safety stop in all of our lift cylinders for safety in case of a sudden trailer departure.

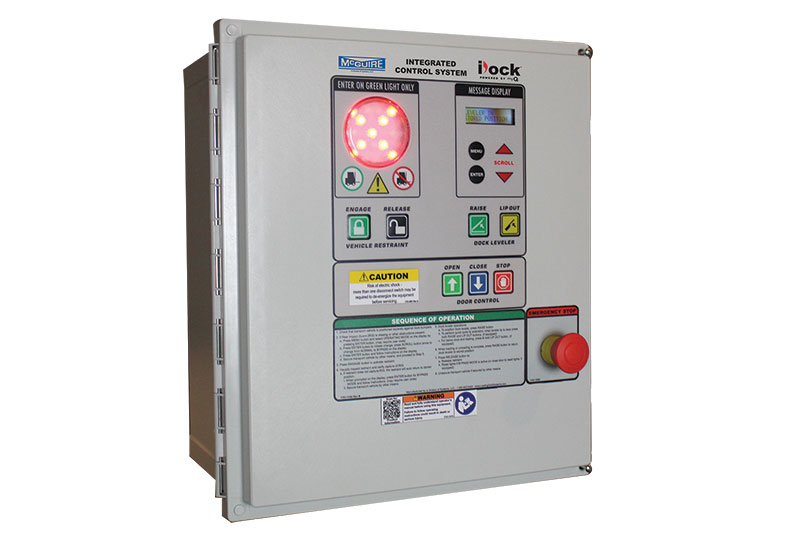

Integrated Control Panels

McGuire Integrated Control Panels can combine all your controls in one easy to operate, clean and simple wall configuration. We Provide what you need from our own UL approved shop. Improve your dock safety and productivity with an Integrated Panel from McGuire.

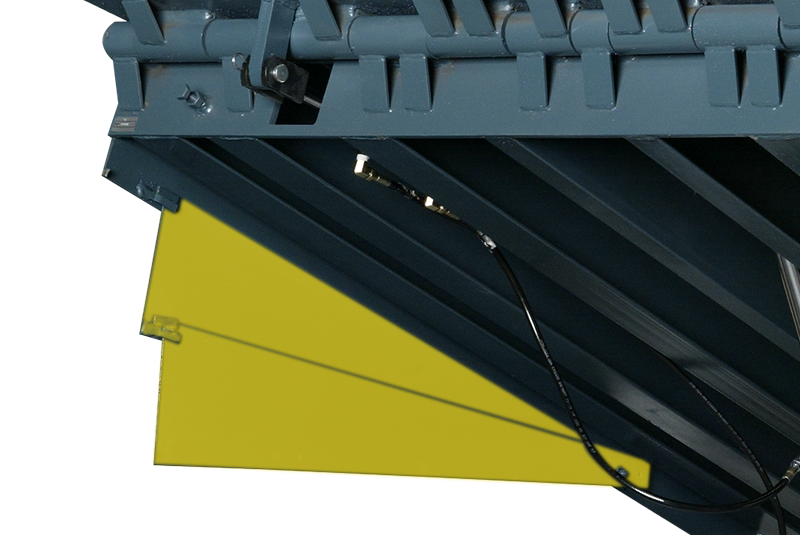

Full Range Telescoping Toe Guards

Provides top safety to your employees at the dock while operating any McGuire hydraulic or air operated dock leveler. Assures any dock leveler with a downward bias inherent in operation has enhanced safety closures at the edges to protect your employees.

HP-66 6' x 6'
HP-68 6' x 8'
HP-610 6' x 10'
HP-656 6'6" x 6'
HP-658 6'6" x 8'
HP-6510 6'6" x 10'
HP-76 7' x 6'
HP-78 7' x 8'
HP-710 7' x 10'


25,000 LBS. CIR
30,000 LBS. CIR
35,000 LBS. CIR
40,000 LBS. CIR

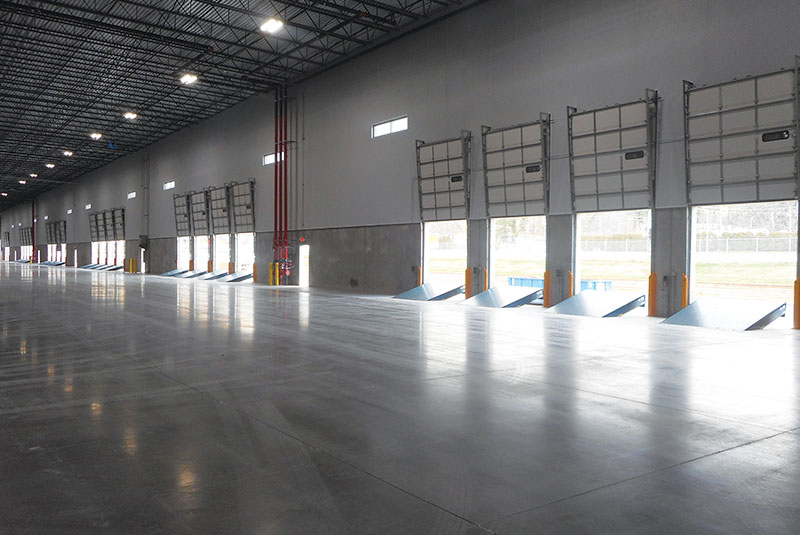

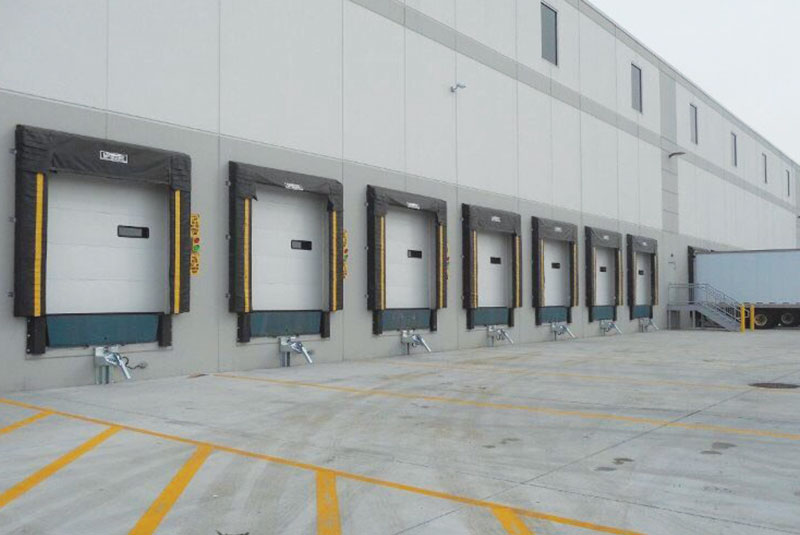

Dock with Hydraulic Levelers

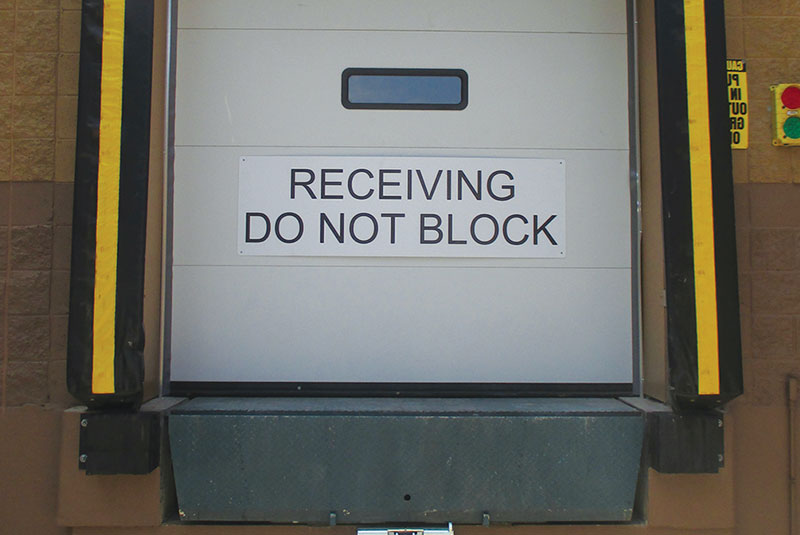

HP Dock Leveler Shown with TS103

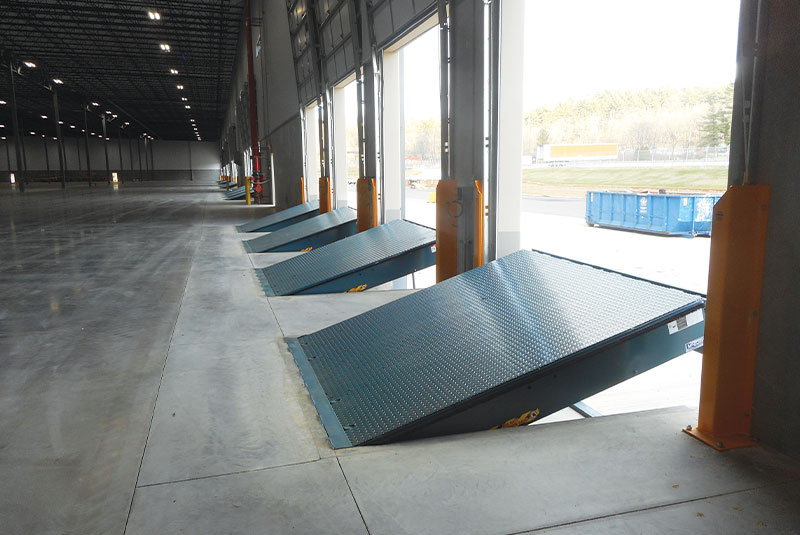

Hydraulic Levelers

Hydraulic Levelers

Hydraulic Levelers

Hydraulic Levelers with TPR Restraints

Hydraulic Leveler with TPR and TS103

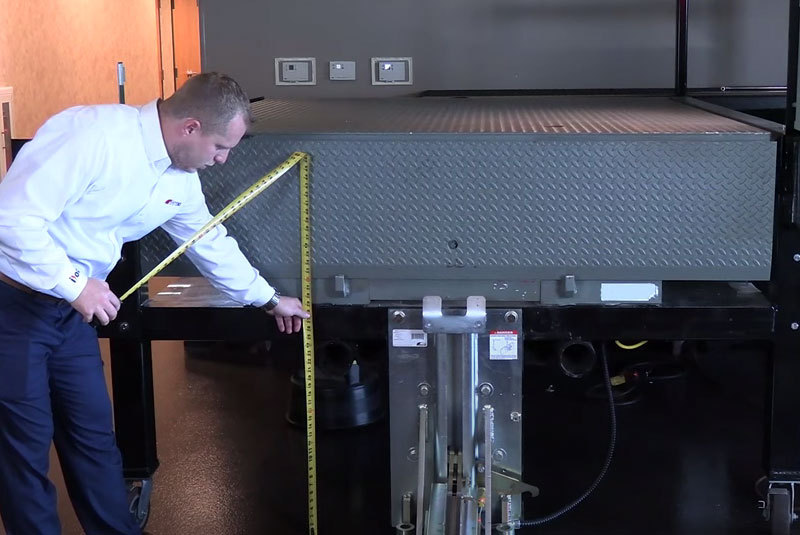

Loading Dock Measuring
