VSH Vertical Storing Leveler

Vertical Storing Hydraulic Dock Leveler



McGuire offers a vertically storing hydraulic dock leveler to meet any of your dock equipment needs while providing low lifetime ownership costs, best built-in safety and years of trouble free service.



The VSH leveler offers unmatched environmental control for temperature sensitive applications. The vertical storing design provides the tightest environmental seal when not in use. The VSH's Push button convenience provides smooth, consistent operation combined with outstanding toughness and dependability.



McGuire VSH levelers can be installed in either a single pre-formed pit or a longer shelf style pit for multiple units.. Various sizes and capacities allow for a large amount of flexibility.  VSH levelers come in 6’, 6’6” & 7’ standard widths and 5’ and 6’ standard lengths with 8’ available. Standard capacities for the “VSH” Series are 40K, 45K and 50K CIR (Comparative Industry Rating).

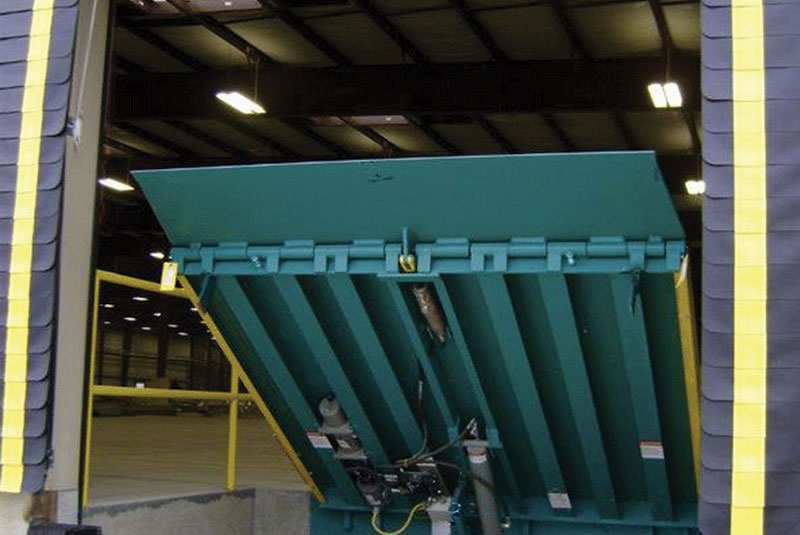

10" Above - 8" Below Dock Range

Additional space inside the building is money. Our unique 10” above and 8” below dock level working range on a 6’ long unit saves space inside the building without compromising operational range. Put that space to work for you.

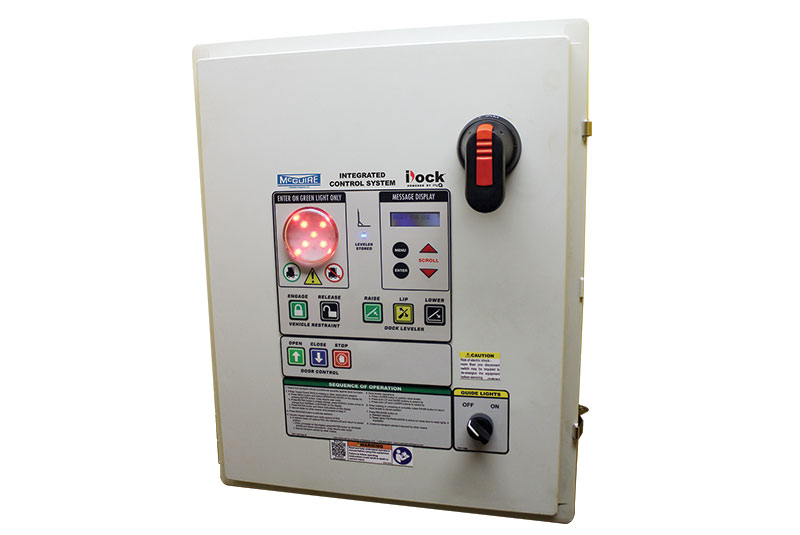

Power Up and Power Down Control

Our constant pressure up, down and lip buttons require the operator to continually monitor positioning of unit. Release of a button prematurely stops the unit wherever it is and alerts the attendant that they must be involved to operate the unit.

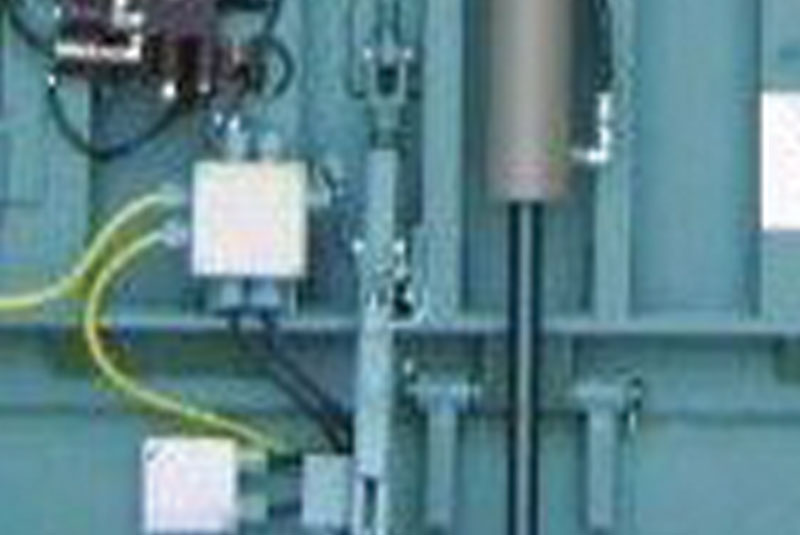

Mechanical and Hydraulic Locking Mechanism's For Redundant Safety

Our automatically engaged mechanical storage prop assists the hydraulic system to lock the unit in the up positon. Use of the down button automatically releases this lock and allows the unit to lower safely.

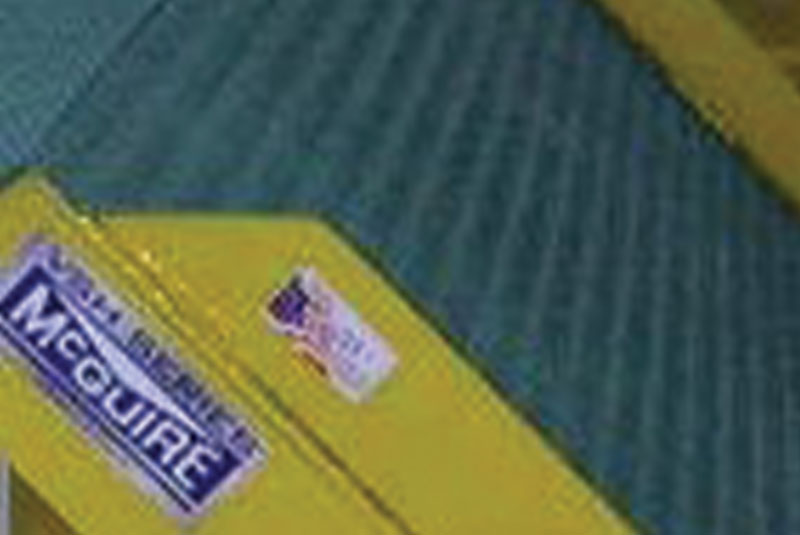

Standard Run-off Guards on Sides

Run-off guards assist in the prevention of accidents by keeping your forklift driver near the center of the unit. We provide this important safety feature with individual pits as well as continuous pits.

MODEL NOMINAL SIZE
VSH-65 6' x 5'
VSH-66 6' x 6'
VSH-68 6' x 8'
VSH-655 6'6" x 5'
VSH-656 6'6" x 6'
VSH-658 6'6" x 8'
VSH-75 7' x 5'
VSH-76 7' x 6'
VSH-78 7' x 8'



CAPACITY - COMPARITIVE
INDUSTRY RATING (CIR)
40,000 LBS. CIR
45,000 LBS. CIR
50,000 LBS. CIR

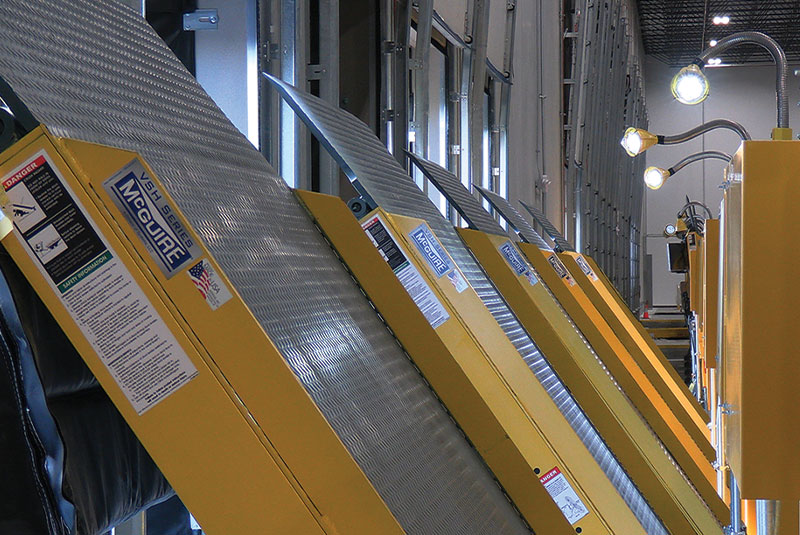

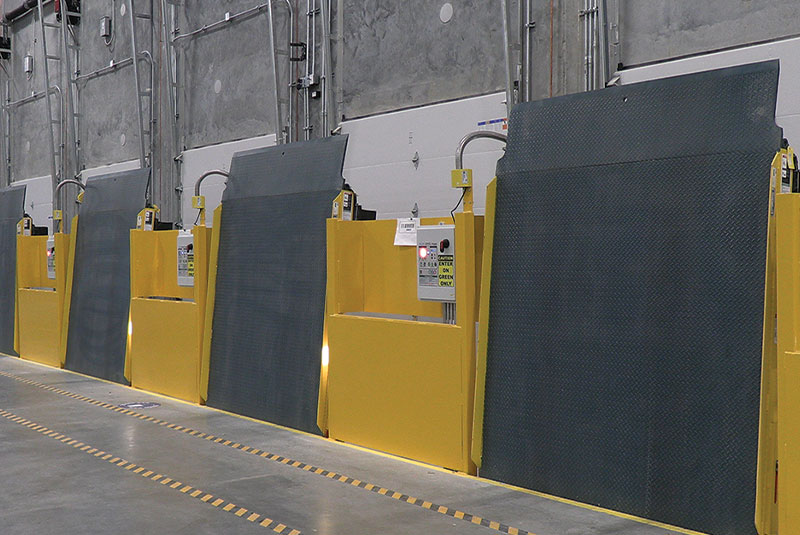

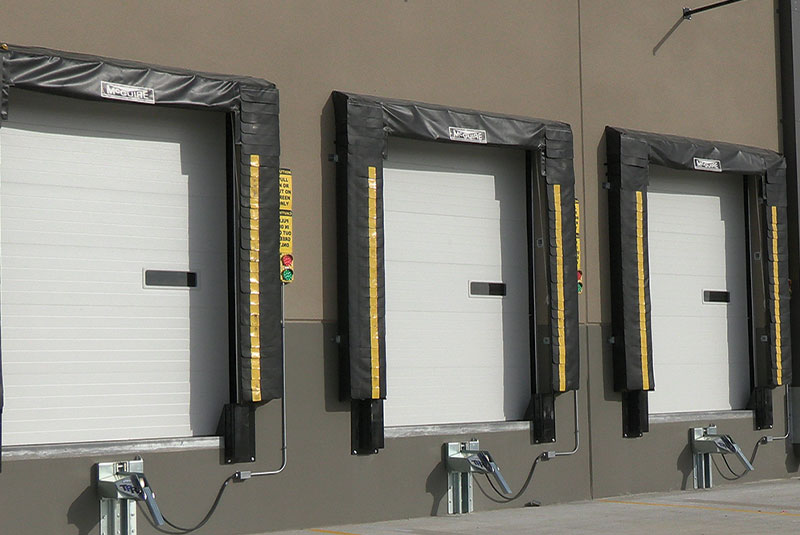

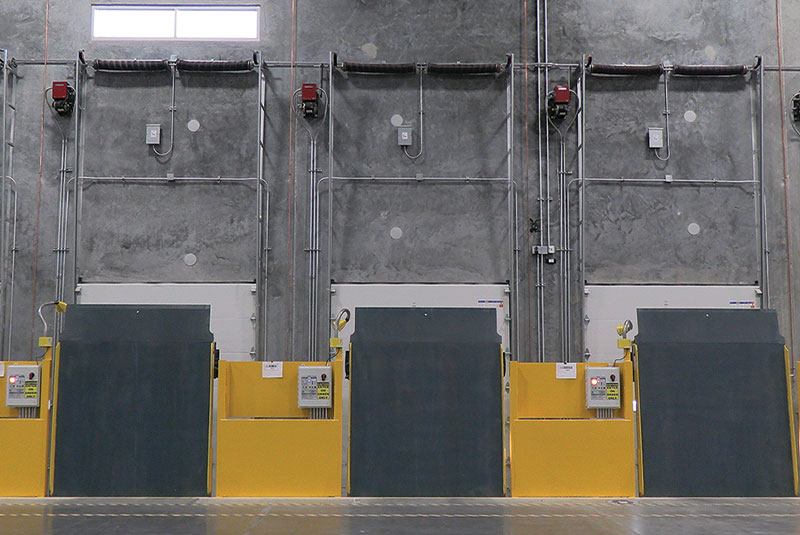

Row of VSH Levelers

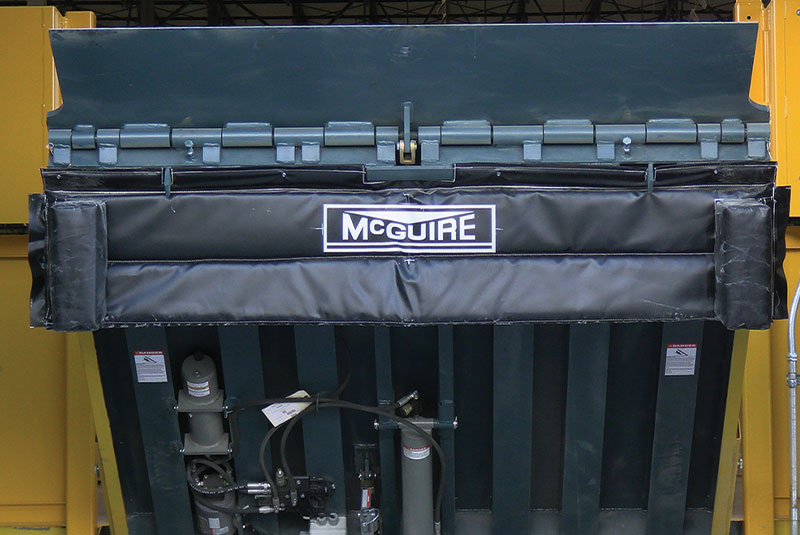

VSH Large Service Range

VSH Levelers with Overhead Storage

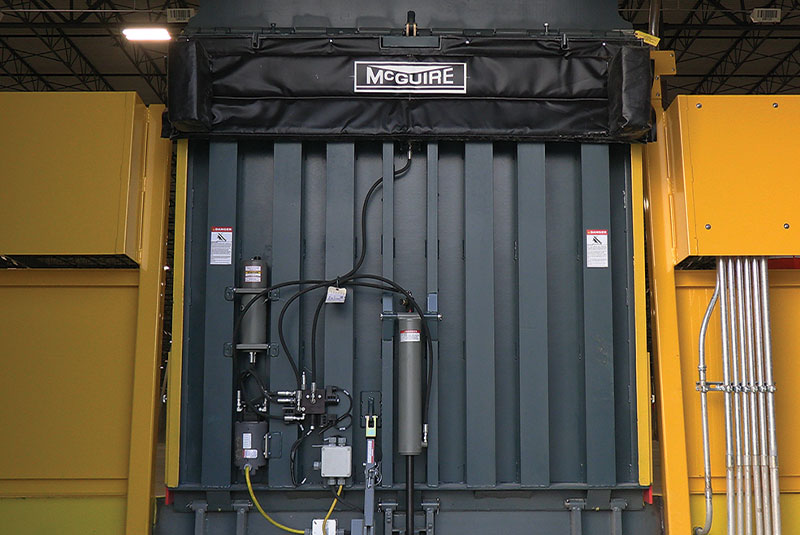

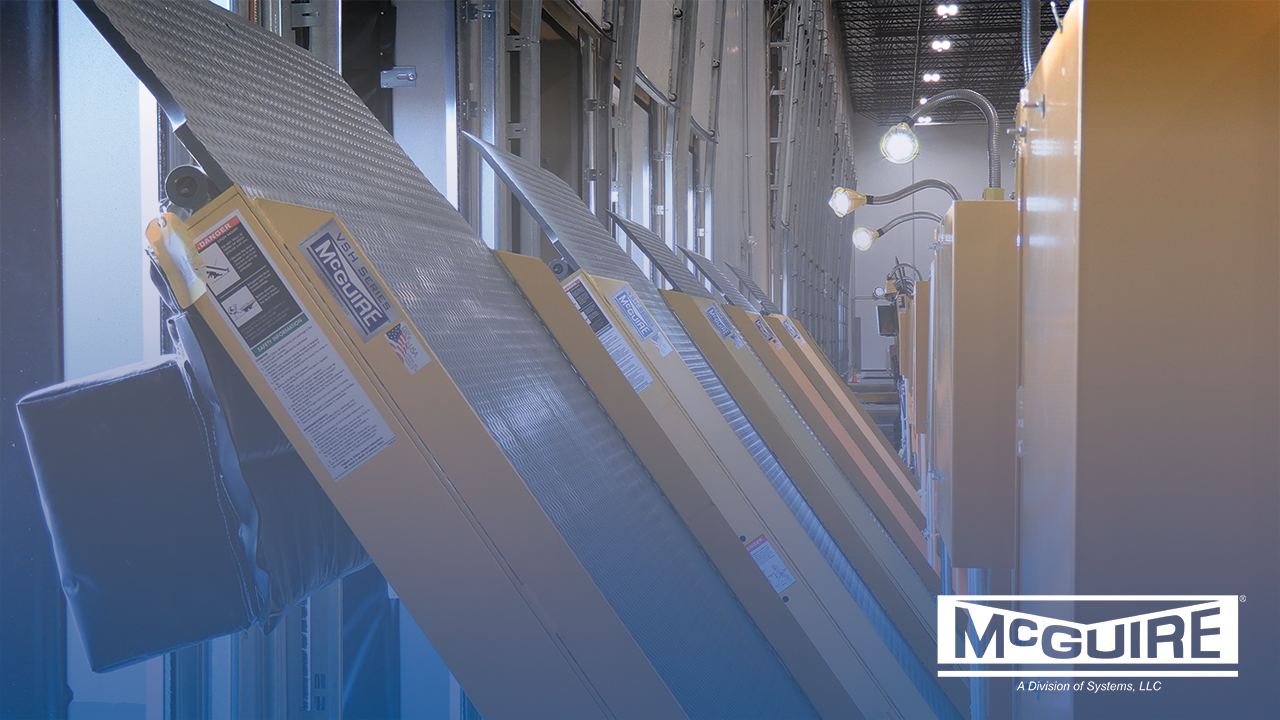

Vertically Stored Leveler

VSH Structural "I" Beams

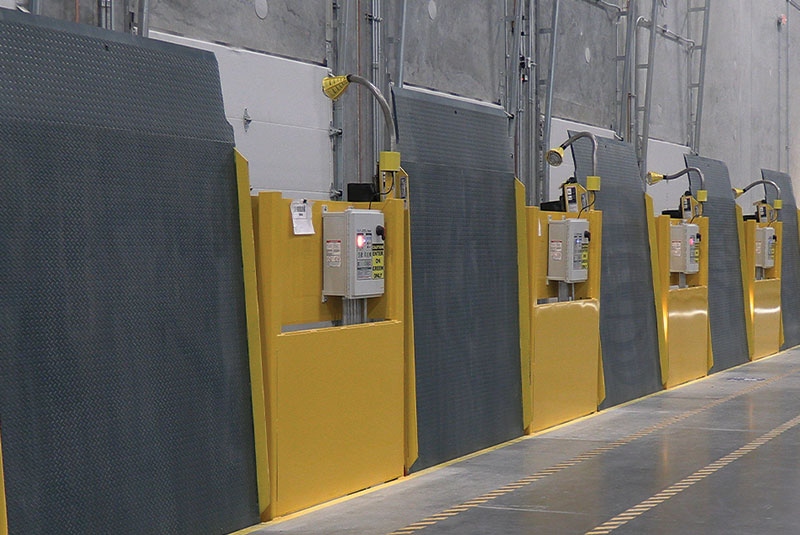

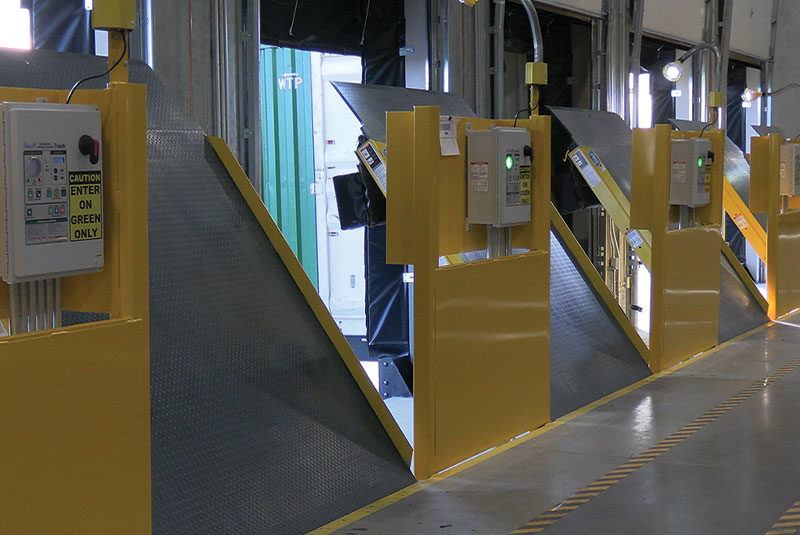

VSH dock levelers

Want to know more about the VSH Vertical Storing Leveler?  Request a Quote today.
