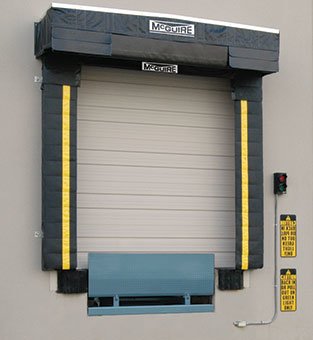

TC1000 Weather Sentry™

TC1000 Weather Sentry™

The TC1000 series Weather Sentry™ rain diverting system is the ultimate answer to water infiltration at the dock. Either as a complete unit when combined with “L” style side pads or as a retrofit head member only that gets mounted over a standard seal, “L” style seal, soft-sided shelter and even a rigid shelter. It tightly seals the entire trailer roof to block out water and provide access to full trailer height. Unique patented head pivot assembly provides automatic positioning and tension for the industries tightest seal. Advanced design stands up to years of dependable service. The TC1000 series is perfect for usage when drive approach slopes into the building allowing rain water to funnel into the dock area. The simple design for easy installation equals an affordable way to protect goods and employees.




MODELS AND BASE FABRIC:


TC1000 Complete Unit:


  • Rough Flex™ base with Max Flex™ reinforcement on header & “L” pads
  • Heavy Usage

TC1000 Header Assembly for Use over Existing:


  • Rough Flex™ base with max flex™ reinforcement on header
  • Heavy Usage






DESIGN STANDARDS:

  • Standard complete unit for door openings 9’W x 10’H x 18” projection
  • Patented spring biased head pivot assembly with automatic positioning and tension for air infiltration
  • Head frame of structural steel tubing with translucent fiberglass houses patented head pivot assembly
  • “L” style side pads with bottom filler panel for air infiltration
  • Header portion is raked fro drainage
  • Base fabric of Rough Flex™ with Max Flex™ reinforcement pleats on header & “L” pads
  • Minimum of 4” dock bumper projection required for level approach with standard trailers

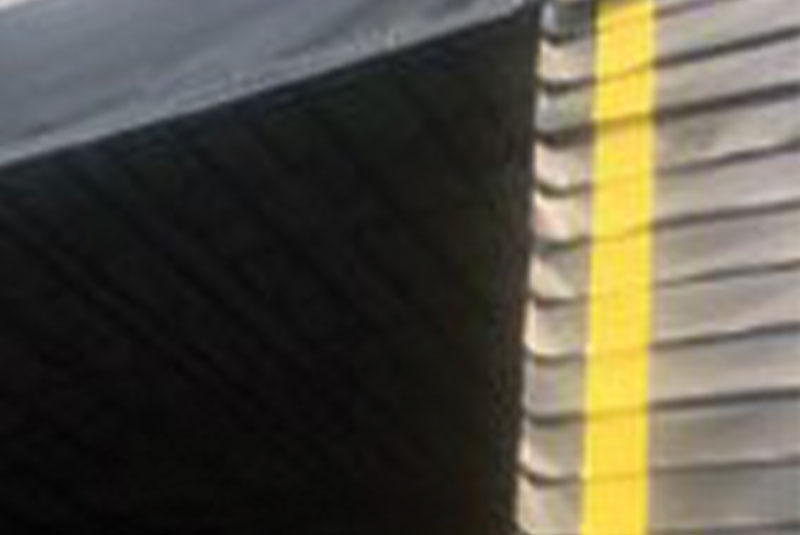

RoughFlex™

RoughFlex™ Base Fabric with Superior Performance Max Flex™ Reinforcement on Header and "L" pads provides maximum durability.

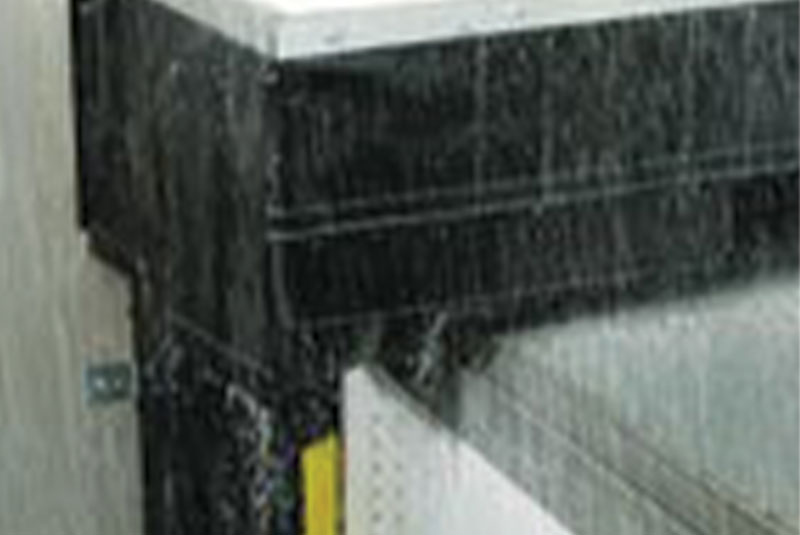

Weatherseal

Perfect for usage when drive approach slopes into the building allowing rain water to funnel into the dock area. The simple design for easy installation equals an affordable way to protect goods and employees.

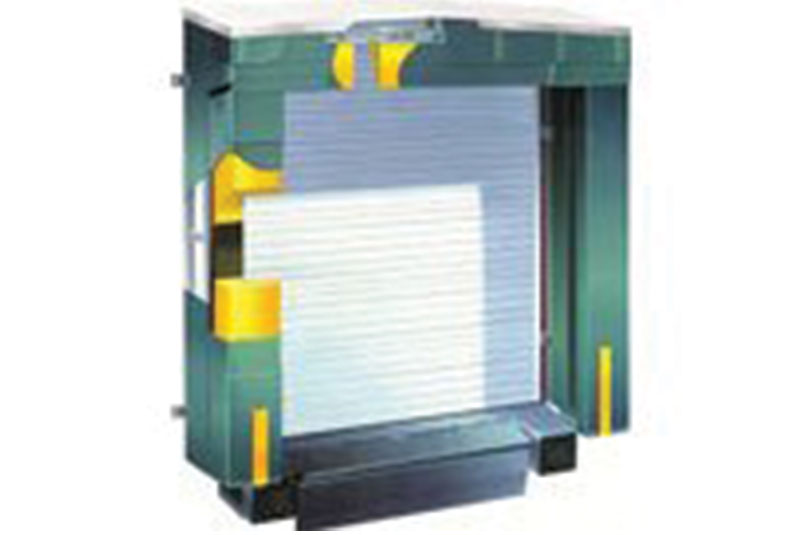

WeatherSentry™

The WeatherSentry™ rain diverting systems is the ultimate answer to water infiltration at the dock. Either as a complete unit when combined with "L" style side pads or as a retrofit head member only that gets mounted over a standard seal, "L" style seal, soft-sided shelter and even a rigid shelter.

Yellow Guide Stripes

Yellow guide stripes on the "L" pad assist in positioning the trailer while bottom filler panels at each "L" pad aids in preventing air flow into the loading dock area.

Want to know more about the TC1000 Weather Sentry™? Request a Quote today.
